07-3. 메뉴/토스트/다이얼로그 연습

프로젝트1: 사용자 정보 입력 앱

<activity_main.xml>

- TextView 2개 : 사용자 이름, 이메일

- Button 1개 : 여기를 클릭 (버튼을 누르면 대화상자 출력)

<대화상자용 xml>

- TextView 2개

- EditText 2개

<대화상자 버튼>

- 취소(토스트: 취소했습니다)

- 확인(editText에 입력한게 activity_main.xml의 TextView에 들어가게)

<토스트용 xml>

- ImageView 2개 : 글자 옆 이미지

- TextView 1개



<activity_main.xml>

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:orientation="vertical"
    android:gravity="center_horizontal"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:id="@+id/main_user"
        android:textSize="20dp"
        android:text="사용자 이름"/>

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:id="@+id/main_mail"
        android:textSize="20dp"
        android:text="이메일"/>

    <androidx.appcompat.widget.AppCompatButton
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:id="@+id/btn"
        android:text="여기를 클릭"
        android:background="#f0f0f0"
        android:textColor="#000000"/>


</LinearLayout>

<dlg.xml>

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="사용자 이름"
        android:textStyle="bold"
        android:textSize="20dp"/>

    <EditText
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:id="@+id/dlg_id"/>

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="이메일"
        android:textSize="20dp"
        android:textStyle="bold"/>

    <EditText
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:id="@+id/dlg_mail"/>

</LinearLayout>

<toast.xml>

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:gravity="center"
    android:background="#ff0000"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <ImageView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="@drawable/ic_launcher_foreground"/>
    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:textColor="#000000"
        android:textStyle="bold"
        android:text="TextView"
        android:textSize="20dp"
        android:id="@+id/toastText"/>
    <ImageView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="@drawable/ic_launcher_foreground"/>

</LinearLayout>

<MainActivity.java>

package com.example.message;

import androidx.appcompat.app.AlertDialog;
import androidx.appcompat.app.AppCompatActivity;

import android.content.DialogInterface;
import android.os.Bundle;
import android.view.Gravity;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import android.widget.TextView;
import android.widget.Toast;

public class MainActivity extends AppCompatActivity {
    TextView user, mail, toastText;
    EditText input_user, input_mail;
    Button btn;
    View dlgView, toastView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        user = (TextView)findViewById(R.id.main_user);
        mail = (TextView)findViewById(R.id.main_mail);
        btn = (Button)findViewById(R.id.btn);

        btn.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                dlgView = (View)View.inflate(MainActivity.this, R.layout.dlg, null);
                AlertDialog.Builder dlg = new AlertDialog.Builder(MainActivity.this);
                dlg.setTitle("사용자 정보 입력");
                dlg.setIcon(R.drawable.people_foreground);
                dlg.setView(dlgView);
                dlg.setPositiveButton("확인", new DialogInterface.OnClickListener() {
                    @Override
                    public void onClick(DialogInterface dialog, int which) {
                        input_user = (EditText)dlgView.findViewById(R.id.dlg_id);
                        input_mail = (EditText)dlgView.findViewById(R.id.dlg_mail);

                        String input1 =  input_user.getText().toString();
                        String input2 = input_mail.getText().toString();

                        if(!input1.trim().isEmpty()) user.setText(input1);
                        if(!input2.trim().isEmpty()) mail.setText(input2);

                    }
                });
                dlg.setNegativeButton("취소", new DialogInterface.OnClickListener() {
                    @Override
                    public void onClick(DialogInterface dialog, int which) {
                        Toast toast = new Toast(MainActivity.this);
                        toastView = (View)View.inflate(MainActivity.this, R.layout.toast, null);
                        toastText = (TextView)toastView.findViewById(R.id.toastText);
                        toastText.setText("취소했습니다");
                        toast.setView(toastView);
                        toast.show();
                    }
                });
                dlg.show();
            }
        });

    }
}

여기를 클릭 버튼을 누르면 다이얼로그 xml을 inflate하고, 취소 버튼을 누르면 토스트 xml을 inflate 해야하기 때문에 각각의 View를 만들어준다. 뷰를 만들었으면 뷰에 속한 위젯을 찾을 때 해당 뷰 내에서 찾아야 한다~



프로젝트1

프로젝트2: 사용자 정보 입력 앱 수정

main_activity에 있는 내용이 대화상자에도 나타나도록 한다.

if(!user.getText().toString().equals("사용자 이름"))
	input_user.setText(user.getText().toString());
if(!mail.getText().toString().equals("이메일"))
	input_mail.setText(mail.getText().toString());

프로젝트2

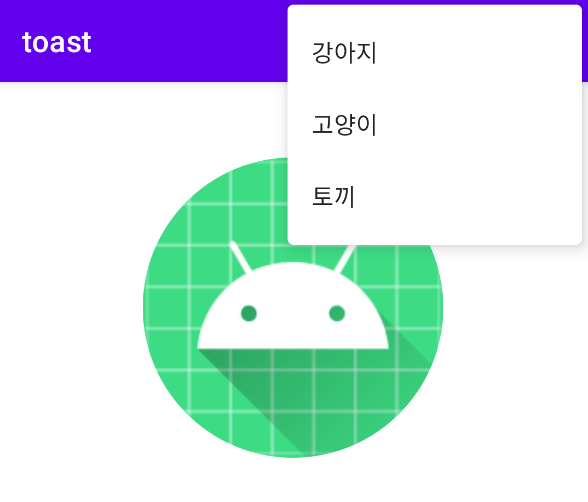

프로젝트3: 옵션 메뉴(Java로만)

옵션 메뉴 item3개 - 강아지, 고양이, 토끼 (선택하면 동물 사진 변경)

package com.example.toast;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.view.Menu;
import android.view.MenuItem;
import android.widget.ImageView;

public class MainActivity extends AppCompatActivity {
    ImageView image;

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        super.onCreateOptionsMenu(menu);
        menu.add(0,1,0,"강아지");
        menu.add(0,2,0,"고양이");
        menu.add(0,3,0,"토끼");

        return true;
    }

    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        switch(item.getItemId()){
            case 1:
                image.setImageResource(R.drawable.ic_launcher_foreground);
                return true;
            case 2:
                image.setImageResource(R.drawable.ic_launcher_background);
                return true;
            case 3:
                image.setImageResource(R.mipmap.ic_launcher_round);
                return true;
        }
        return false;
    }

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        image = (ImageView)findViewById(R.id.image);
    }
}

이미지 다운받기 싫어서 그냥.. 있는 기본 이미지로 했다 ^^

그리고 교재에서는 옵션 메뉴가 아래에 뜨길레 어떻게 바꾸나 찾아봤더니 그냥 버전에 따라 다른거였다.

프로젝트3



프로젝트4: 이미지 토스트 랜덤 위치



<activity_main.xml>

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:gravity="center"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="토스트 보이기"
        android:id="@+id/btn"/>

</LinearLayout>

<toast.xml>

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent"
    android:layout_height="match_parent">

    <ImageView
        android:layout_width="100dp"
        android:layout_height="100dp"
        android:id="@+id/image"
        android:src="@drawable/ic_launcher_foreground"/>

</LinearLayout>

<MainActivity.java>

package com.example.toast;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AlertDialog;
import androidx.appcompat.app.AppCompatActivity;

import android.content.res.Resources;
import android.graphics.Color;
import android.os.Bundle;
import android.view.Display;
import android.view.Gravity;
import android.view.Menu;
import android.view.MenuItem;
import android.view.View;
import android.view.WindowManager;
import android.widget.Button;
import android.widget.ImageView;
import android.widget.RadioButton;
import android.widget.RadioGroup;
import android.widget.TextView;
import android.widget.Toast;

public class MainActivity extends AppCompatActivity {
    Button btn;
    View toastView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        btn = (Button)findViewById(R.id.btn);
        toastView = (View)View.inflate(MainActivity.this, R.layout.toast, null);

        btn.setOnClickListener(new View.OnClickListener(){
            @Override
            public void onClick(View v) {
                Toast toast = new Toast(MainActivity.this);
                toast.setView(toastView);
                Display display = ((WindowManager)getSystemService(WINDOW_SERVICE)).getDefaultDisplay();
                int xOffset = (int)(Math.random() * display.getWidth());
                int yOffset = (int)(Math.random() * display.getHeight());
                toast.setGravity(Gravity.TOP|Gravity.LEFT, xOffset, yOffset);
                toast.show();
            }
        });
    }
}



프로젝트5: custom dialog

dialog에 title 분할선을 넣고 싶어서 애 좀 먹었다ㅜ



<activity_main.xml>

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:padding="20dp"
    android:orientation="vertical"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <RadioGroup
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:id="@+id/rGroup">
        <RadioButton
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="강아지"
            android:id="@+id/rBtn1"/>
        <RadioButton
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="고양이"
            android:id="@+id/rBtn2"/>
        <RadioButton
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="토끼"
            android:id="@+id/rBtn3"/>
        <RadioButton
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="말"
            android:id="@+id/rBtn4"/>
    </RadioGroup>

    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:id="@+id/btn"
        android:text="그림보기"/>

</LinearLayout>

<dlg.xml>

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:gravity="center" android:layout_width="match_parent"
    android:layout_height="match_parent">

    <TextView
        android:textColor="#0000ff"
        android:textSize="20dp"
        android:paddingTop="25dp"
        android:paddingLeft="10dp"
        android:textStyle="bold"
        android:background="@drawable/text"
        android:layout_width="match_parent"
        android:layout_height="80dp"
        android:id="@+id/title"/>

    <ImageView
        android:layout_width="200dp"
        android:layout_height="200dp"
        android:id="@+id/image"/>

    <androidx.appcompat.widget.AppCompatButton
        android:background="@drawable/btn"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="닫기"
        android:layout_gravity="center"
        android:id="@+id/dlg_btn"/>

</LinearLayout>

다이얼로그 타이틀로 divider를 사용하고 싶었는데 잘 안되서 그냥 아예 타이틀도 TextView를 사용했다.

그래서 텍스트 뷰에서 그냥 아래 선을 주는 방식으로 사용했다.



<text.xml>

<?xml version="1.0" encoding="utf-8"?>
<layer-list xmlns:android="http://schemas.android.com/apk/res/android">
    <item
        android:top="-3dp"
        android:left="-3dp"
        android:right="-3dp">
    <shape>
        <stroke
            android:width="3dp"
            android:color="#0000ff"/>
    </shape>
</item>

</layer-list>

<btn.xml>

<?xml version="1.0" encoding="utf-8"?>
<layer-list xmlns:android="http://schemas.android.com/apk/res/android">
    <item
        android:bottom="-1dp"
        android:left="-1dp"
        android:right="-1dp">
        <shape>
            <solid
                android:color="#ffffff"/>

            <stroke
                android:width="1dp"
                android:color="@color/black"/>
        </shape>
    </item>
</layer-list>

<MainActivity.java>

package com.example.toast;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AlertDialog;
import androidx.appcompat.app.AppCompatActivity;

import android.content.res.Resources;
import android.graphics.Color;
import android.os.Bundle;
import android.view.Menu;
import android.view.MenuItem;
import android.view.View;
import android.widget.Button;
import android.widget.ImageView;
import android.widget.RadioButton;
import android.widget.RadioGroup;
import android.widget.TextView;
import android.widget.Toast;

public class MainActivity extends AppCompatActivity {
    RadioGroup rGroup;
    Button btn;
    View dialogView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        rGroup = (RadioGroup)findViewById(R.id.rGroup);
        btn = (Button)findViewById(R.id.btn);

        btn.setOnClickListener(new View.OnClickListener(){
            @Override
            public void onClick(View v) {
                dialogView = (View)View.inflate(MainActivity.this, R.layout.dlg, null);
                AlertDialog.Builder dlg = new AlertDialog.Builder(MainActivity.this);

                ImageView image = (ImageView)dialogView.findViewById(R.id.image);
                Button dlg_btn = (Button)dialogView.findViewById(R.id.dlg_btn);
                TextView title = (TextView)dialogView.findViewById(R.id.title);

                switch (rGroup.getCheckedRadioButtonId()){
                    case R.id.rBtn1:
                        title.setText("강아지");
                        image.setImageResource(R.drawable.ic_launcher_foreground);
                        break;
                    case R.id.rBtn2:
                        title.setText("고양이");
                        image.setImageResource(R.drawable.ic_launcher_background);
                        break;
                    case R.id.rBtn3:
                        title.setText("토끼");
                        image.setImageResource(R.mipmap.ic_launcher);
                        break;
                    case R.id.rBtn4:
                        title.setText("말");
                        image.setImageResource(R.mipmap.ic_launcher_round);
                        break;
                    default:
                        Toast.makeText(MainActivity.this, "버튼을 선택하세요.", Toast.LENGTH_SHORT).show();
                }
                dlg_btn.setOnClickListener(new View.OnClickListener() {
                    @Override
                    public void onClick(View v) {

                    }
                });
                dlg.setView(dialogView);

                final AlertDialog dialog = dlg.create();
                dialog.show();

                dlg_btn.setOnClickListener(new View.OnClickListener() {
                    @Override
                    public void onClick(View v) {
                        dialog.dismiss();
                    }
                });
            }
        });
    }
}

버튼을 눌렀을 때 대화창이 닫히도록 하기 위해서는 AlertDialog 가 필요서 Builder.create()를 이용해 만들었다.



프로젝트5
